| Product
listing B&R |
|
| |
|
|
 |
|
|
| |
|
|
We
provide new parts and spare parts for B&R devices.
We'll assist you with the procurement of no longer manufactured devices. |
 WhatsApp |
|
NEW: Repair of B&R X20 systems.

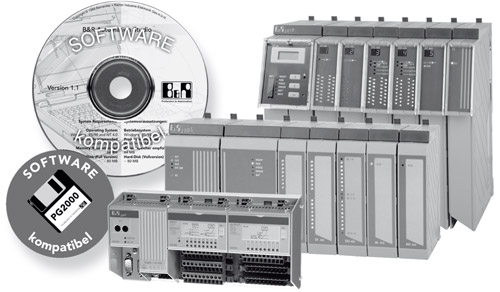

Repair of B&R System 2003 + B&R System 2005 controllers |
|
|
|
|
| System 2003 |
Central processing units |
| 7CP430.60-1 |
2003 Central processing unit, 100 kByte SRAM, 256 kByte FlashPROM, 24 VDC, 7 W supply, 1 RS232 interface, 1 CAN interface, CAN: isolated, networkable |
| 7CP470.60-1 |
2003 Central unit 100 KB SRAM, 256 KB FlashPROM 24 VDC, 14 W power supply 1 RS232 interface 1 CAN interface CAN: isolated, networkable max. 128 digital / 64 analog EAs |
| 7CP474.60-1 |
2003 Central unit 100 KB SRAM, 512 KB FlashPROM 24 VDC, 12.6 W power supply 1 RS232 interface 1 CAN interface CAN: electrically isolated, network-compatible 4 slots for adaptation modules max. 208 digital / 80 analog EAs |
| 7CP476.60-1 |
2003 Central processing unit, 750 kByte SRAM, 1,5 MByte FlashPROM 24 VDC, 12,5 W supply, 1 RS232 interface, 1 CAN interface, CAN: isolated, networkable, 4 slots for adaptation modules, system bus for expansion modules |
|
| 7CP570.60-1 |
2003 Central processing unit, Celeron 300, 64 MByte DRAM, 512 kByte SRAM, 24 VDC, 15 W supply, exchangeable user memory: CompactFlash, 1 slot for aPCI modules, 1 USB interface, 1 RS232 interface, 1 Ethernet interface 100 Base-T, program memory separate! |
| 7CP770.60-1 |
2003 Central processing unit, 100 kByte SRAM, 256 kByte FlashPROM, 100-240 VAC, 14 W supply, 1 RS232 interface, 1 CAN interface, CAN: electrically isolated, network-compatible |
| 7CP774.60-1 |
2003 Central processing unit, 100 kByte SRAM, 512 kByte FlashPROM, 100-240 VAC, 12.6 W power supply, 1 RS232 interface, 1 CAN interface, CAN: electrically isolated, network-compatible, 4 slots for adaptation modules |
| |
|
|
System 2003 - Bus Controller Module |
| 7EX470.50-1 |
2003 CAN bus controller 24 VDC, 14.5 W supply 2 CAN interfaces electrically isolated, network-compatible |
| 7EX290.50-1 |
2003 X2X Link Bus Controller, 24 VDC, 3.2 W supply, 1 X2X Link interface isolated, order field terminal 1 x TB712 separately! |
| 7EX481.50-1 |
2003 ETHERNET Powerlink - Bus controller, 1 ETHERNET Powerlink interface, 24 VDC, electrically isolated, field terminal 1* 0TB704.9 order separately! |
| |
|
| |
|
Contact: |
|
| |
|
| |
|
|
|
| |
System 2003 - Analoginterface (AF) Module |
| 7AF101.7 |
2003 Adapter module, 4 slots for adaptation modules |
| 7AF104.7 |
2003 Adapter module high speed, 4 slots for adaptation modules
|
| |
|
| |
|
| 7AI261.7 |
2003 Analoges Eingangsmodul, 1 DMS Eingang, 24 Bit Wandlerauflösung, Anpassungsmodul |
| 7AI294.7 |
2003 Analog input module, 4 inputs, potentiometer displacement transducer, 13 bit, adjustment module |
| 7AI351.7 |
2003 Analog input module 1 input, +/- 10 V or 0 to 20 mA 12 bit + Vz. adjustment module |
| 7AI351.70 |
2003 Analog input module, 1 input, +/- 10 V or 0 to 20 mA, 12 bit + Vz. adjustment module, field terminal 1 * 7TB712.x order separately! |
| 7AI354.70 |
2003 Analog input module, 4 inputs, ±10 V, 12 bit + Vz., matching module, field terminal 1x TB712 separately! |
| 7AI774.70 |
2003 Analog input module, 4 inputs, 0 to 20 mA, 12 bit, matching module, field terminal 1x TB712 separately! |
| 7AI984.70 |
2003 Energy measuring module, 3 current measuring inputs 1A for external current transformer, one of them switchable to internal current transformer(±2,5V measuring signal), voltage input for measuring the single phases Field terminals 0TB1106.8010 and 0TB804.9 to be ordered separately! |
| 7AM351.70 |
2003 Analog mixing module, 1 input, ±10 V, 16 bit, 1 output, ±10 V, 16 bit, matching module, field terminal 1x TB712 order separately! |
| 7AO352.70 |
2003 Analog output module, 2 outputs, ±10 V or 0 to 20 mA, 12 bit, matching module, field terminal 1x TB712 order separately! |
| 7AT324.70 |
2003 Analog input module, 4 temperature inputs (2-wire connection), KTY10 -50 to +150 °C, KTY84 -40 to +300 °C, PT100 -200 to +850 °C, PT1000 -200 to +850 °C, adaptation module, field terminal 1x TB712 order separately! |
| 7AT351.7 |
2003 Analog input module 1 input, PT100 (3-wire connection) -200 to +850 degrees C Adjustment module |
| 7AT352.70 |
2003 Analog input module, 2 inputs, PT100 (3-wire connection), -200 to +850 °C, matching module, field terminal 1x TB712 order separately! |
| 7AT664.70 |
2003 Analog input module, 4 inputs, thermocouples, -270 to +1372 °C, matching module, field terminal 1x TB712 order separately! |
| 7CI410.70-1 |
2003 Analog input module 2 temperature inputs non-contact measurement 0 degrees C to +300 degrees C Adjustment module |
| 7CM211.7 |
2003 Combination module, 8 inputs, 24 VDC, 4 ms, sink, 3 single-channel or 2 dual-channel counters or 2 incremental encoders, 20 kHz, 8 transistor outputs, 24 VDC, 0.5 A, comparator function, short-circuit proof, 2 inputs, ±10 V / 0 to 20 mA, 12 bit, 2 outputs, ±10 V, 12 bit, order field terminals 2x TB718 separately! |
| 7CM411.70-1 |
2003 Combination module, 3 inputs, 24 VDC, 50 kHz, sink, single or dual channel counter, incremental encoder, 2 transistor outputs, 24 VDC, 0.5 A, comparator function, short-circuit proof, 3 inputs, ±10 V, 16 bit, 3 outputs, ±10 V, 16 bit, order field terminals 3x 7TB710 separately! |
| |
|
| 7DI135.70 |
2003 Digital input module, 4 inputs 24 VDC, sink, incremental encoder operation: 50 kHz, event counter operation: 100 kHz, 1 comparator output 24 VDC, matching module, field terminal 1x TB712 order separately! |
| 7DI138.70 |
2003 Digital input module, 10 inputs 24 VDC, sink, 2 inputs usable for event counter operation, input frequency 20 kHz, matching module, field terminal 1x TB712 order separately! |
| 7DI140.70 |
2003 Digital input module, 10 inputs 24 VDC, sink, 2 inputs usable for event counter operation or for direction dependent position detection, input frequency 50 kHz, 4 inputs usable as high speed inputs (e.g. gate time, frequency measurement - only at CPU interface), adaptation module, field terminal 1x TB712 order separately! |
| 7DI435.7 |
2003 Digital input module, 8 inputs 24 VDC, 1 ms, sink/source, field terminals 3x 7TB710 order separately! |
| 7DI439.7 |
2003 Digital input module, 16 inputs 24 VDC, 1 ms, sink/source, field terminals 3x TB718 order separately! |
| 7DI439.72 |
2003 Digital input module, 16 inputs 24 VDC, 1 ms, sink/source, 2 isolated input groups |
| 7DI645.7 |
2003 Digital input module, 8 inputs 100-240 VAC, 50 ms, field terminals 3x 7TB710 order separately! |
| |
|
Contact: |
|
| |
|
| 7DM435.7 |
2003 Digital mixer module, 8 inputs 24 VDC, 1 ms, sink/source, 8 transistor outputs 24 VDC, 0.5 A, field terminals 3x 7TB710 order separately! |
| 7DM438.72 |
2003 Digital mixer module, 8 inputs 24 VDC, 1 ms, sink/source, 8 transistor outputs 24 VDC, 0.5 A |
| 7DM465.7 |
2003 Digital mixer module, 16 inputs 24 VDC, 1 ms, sink, 16 transistor outputs 24 VDC, 0.5 A, field terminals 2x TB718 order separately! |
| |
|
| 7DO135.70 |
|
| 7DO138.70 |
2003 Digital output module, 8 outputs 24 VDC, 0.5 A, short circuit proof, thermal overload protection, matching module, field terminal 1x TB712 order separately! |
| 7DO139.70 |
2003 Digital output module, 8 outputs 12 to 24 VDC, 0.5 A, short circuit protection, thermal overload protection, matching module, field terminal 1x TB712 order separately! |
| 7DO164.7 |
2003 Do 1x4 Zuend-TRIAC 48... 125VAC |
| 7DO435.7 |
2003 Digital output module, 8 FET outputs 24 VDC, 2 A, each output optionally usable as input, order field terminals 3x 7TB710 separately! |
| 7DO720.7 |
2003 Digital output module, 8 relay outputs 240 VAC / 30 VDC, 2 A, field terminals 3x 7TB710 order separately! |
| 7DO721.7 |
2003 Digital output module, 4 relay outputs 240 VAC / 24 VDC, 4 A |
| 7DO722.7 |
2003 Digital output module, 4 relay outputs 240 VAC / 24 VDC, 4 A |
| 7DO723.7 |
|
| 7MM424.70-1 |
2003 Motor module, four motor digital output stages, 24 VDC, 3 A up to 50 °C, max. starting current 10 A (max. 50 ms), electronic overcurrent and overtemperature protection, field terminal 1x TB710 to be ordered separately! |
| 7MM432.70-1 |
2003 Motor bridge module, two motor (H) bridges, 10 to 30 VDC @ 4 A, peak current up to 8 A (max. 2 s), integrated current controller with electrical overcurrent protection, 12 digital inputs 24 V, optionally usable for end position monitoring and position detection (counter functions, 20 kHz A/B/R evaluation), order field terminals 1x TB710 and 1x TB718 separately! |
| 7NC161.7 |
2003 Encoder module, input frequency 100 kHz, incremental or absolute, 32 bit, encoder supply 5 VDC or 24 VDC, adaptation module |
| 7IF311.7 |
2003 Interface module, 1 RS232 interface, customization module |
| 7IF321.7 |
2003 Interface module, 1 RS485/RS422 interface, electrically isolated, network-compatible, adaptation module |
| 7IF361.70-1 |
2003 Interface module, 1 RS485 interface, electrically isolated and network-compatible, transmission protocol: Profibus DP, adaptation module |
| 7IF371.70-1 |
2003 Interface module, 1 CAN interface, operation only via frame driver, electrically isolated, network-compatible, adaptation module |
| |
System 2003 - module carrier |
| 7BP702.0 |
2003 Module support for 2 modules incl. left and right side panel |
| 7BP703.0 |
2003 Module support for 3 modules incl. left and right side panel |
| 7BP706.0 |
2003 Module rack for 6 modules incl. left and right side panel |
| |
|
| |
|
| |
|
Contact: |
|
| |
|
| 7AF101.7 |
2003 Adapter module, 4 slots for adaptation modules |
| 7AF104.7 |
2003 Adapter module high speed, 4 slots for adaptation modules |
| |
|
System 2005 |
Cable sets |
| |
Sub-D 25pin plug with 1-2m cable suitable for 3DM476.6 / 16 In / 16 Out |
| |
|
| |
|
| |
System 2005 - Module carrier |
| 3EX250.60-1 |
2005 Backplane module 12 slots with backup battery |
| 3BP155.41 |
2005 Backplane module 6 slots with buffer battery |
| |
System 2005 - Bus Controller Module |
| 3EX250.60-1 |
2005 Remote I/O slave controller potential-separated RS485 interface for coupling to remote I/O bus Plug-in unit for power supply modules |
| |
System 2005 - Central units |
| 3XP152.60-2 |
2005 Central unit 118 KB SRAM, 512 KB FlashPROM 1 RS232 interface 1 CAN interface CAN: electrically isolated, network-compatible Plug-in unit for power supply modules |
| 3IF260.60-1 |
2005 Central processing unit or Progr. interface processor 850 KB SRAM, 1.5 MB FlashPROM 1 slot for plug-in interface modules |
| 3IF671.9 |
2005 Interface module 1 RS232 interface 1 RS485/RS422 interface electrically isolated, network-compatible 1 CAN interface electrically isolated, network-compatible Plug-in unit for CPU and IF modules |
| 3IF613.9 |
Interface Module 3xRS232 |
| |
System 2005 - Power supply modules |
| 3PS465.9 |
2005 Power supply module 24 VDC, 50 W with expansion slot |
| |
System 2005 - Digital input modules |
| 3DI475.6 |
2005 Digital input module 16 inputs 24 VDC, 10 ms, sink/source 4 isolated input groups Field terminal 1 * 3TB170.x order separately! |
| |
System 2005 - Digital output modules |
| 3DO479.6 |
2005 Digital output module 16 transistor outputs 24 VDC, 0.5 A 2 potential-separated output groups Field terminal 1 * 3TB 170.x order separately! |
| |
System 2005 - Digital mixing modules |
| 3DM476.6 |
2005 Digital mixer module 16 inputs, 24 VDC / 24 VAC, 1 ms DC: sink/source
4 isolated input groups 16 transistor outputs, 24 VDC, 0.4 A Contacting via 25 pin DSUB male and female connector |
| |
System 2005 - Analog output modules |
| 3AO350.6 |
2005 Analog output module 8 outputs, +/- 10 V, 12 bit Field terminal 1 * 3TB170.x order separately! |
| |
System 2005 - Analog Mixing Modules |
| 3AM050.6 |
2005 Analog mixing module 4 inputs, 0 to 10 V, 12 bit 4 outputs, +/- 10 V, 12 bit Field terminal 1 * Order 3TB170.x separately! |
| |
System 2005 - Counting and positioning modules |
| 3NC154.60-2 |
2005 Positioning module 3 axes, for each of the 3 axes applies:
Input for incremental encoder 5V Input frequency 150 kHz Input for SSI absolute encoder Analog output +/-10 V, 12 bit Encoder supply 5VDC or 24 VDC 4 digital inputs 24 VDC, sink Trigger input 24 VDC, sink 1 Relay output 24 VAC / 24 VDC, 1 A Field terminals 3 * 3TB162.x order separately! |
| |
Accessories System 2000 - Field brackets |
| 3BM150.9 |
2005 Dummy module |
| 3CP260.60-1 |
2005 Central processing unit 4 MB DRAM, 850 KB SRAM, 512 KB FlashPROM 2 plug-in slots, 1 PCMCIA slot
1 RS232 interface |
| 3IF672.9 |
2005 Interface module 1 RS232 interface 2 CAN interfaces CAN: electrically isolated, network-compatible
Plug-in unit for CPU and IF modules |
| 3DI476.6 |
2005 Digital input module 16 inputs 24 VDC, 1 ms, sink/source 4 potential separated input groups
Field terminal 1 * 3TB170.x order separately! |
| 3DO480.6 |
2005 Digital output module 16 transistor outputs 24 VDC, 2 A 2 potential separated output groups
Field terminal 1 * 3TB170.x order separately! |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| 7AI261.7 |
2003 Analog input module, 1 strain gauge input, 24 bit converter resolution, matching module |
| 7AI294.7 |
2003 Analog input module, 4 inputs, potentiometer displacement transducer, 13 bit, adjustment module |
| 7AI351.7 |
2003 Analog input module 1 input, +/- 10 V or 0 to 20 mA 12 bit + Vz. adjustment module |
| 7AI354.70 |
2003 Analog input module, 4 inputs, ±10 V, 12 bit + Vz., matching module, field terminal 1x TB712 separately! |
| 7AI774.70 |
2003 Analog input module, 4 inputs, 0 to 20 mA, 12 bit, matching module, field terminal 1x TB712 separately! |
| 7AI984.70 |
2003 Energy measuring module, 3 current measuring inputs 1A for external current transformer, one of them switchable to internal current transformer(±2,5V measuring signal), voltage input for measuring the single phases Field terminals 0TB1106.8010 and 0TB804.9 to be ordered separately! |
| 7AM351.70 |
2003 Analog mixing module, 1 input, ±10 V, 16 bit, 1 output, ±10 V, 16 bit, matching module, field terminal 1x TB712 order separately! |
| 7AO352.70 |
2003 Analog output module, 2 outputs, ±10 V or 0 to 20 mA, 12 bit, matching module, field terminal 1x TB712 order separately! |
| 7AT324.70 |
2003 Analog input module, 4 temperature inputs (2-wire connection), KTY10 -50 to +150 °C, KTY84 -40 to +300 °C, PT100 -200 to +850 °C, PT1000 -200 to +850 °C, adaptation module, field terminal 1x TB712 order separately! |
| 7AT351.7 |
2003 Analog input module 1 input, PT100 (3-wire connection) -200 to +850 degrees C Adjustment module |
| 7AT352.70 |
2003 Analog input module, 2 inputs, PT100 (3-wire connection), -200 to +850 °C, matching module, field terminal 1x TB712 order separately! |
| 7AT664.70 |
2003 Analog input module, 4 inputs, thermocouples, -270 to +1372 °C, matching module, field terminal 1x TB712 order separately! |
| 7CI410.70-1 |
2003 Analog input module 2 temperature inputs non-contact measurement 0 degrees C to +300 degrees C Adjustment module |
| 7CM211.7 |
2003 Combination module, 8 inputs, 24 VDC, 4 ms, sink, 3 single-channel or 2 dual-channel counters or 2 incremental encoders, 20 kHz, 8 transistor outputs, 24 VDC, 0.5 A, comparator function, short-circuit proof, 2 inputs, ±10 V / 0 to 20 mA, 12 bit, 2 outputs, ±10 V, 12 bit, order field terminals 2x TB718 separately! |
| 7CM411.70-1 |
2003 Combination module, 3 inputs, 24 VDC, 50 kHz, sink, single or dual channel counter, incremental encoder, 2 transistor outputs, 24 VDC, 0.5 A, comparator function, short-circuit proof, 3 inputs, ±10 V, 16 bit, 3 outputs, ±10 V, 16 bit, order 3x 7TB710 field terminals separately! |
| |
|
| 7DI135.70 |
2003 Digital input module, 4 inputs 24 VDC, sink, incremental encoder operation: 50 kHz, event counter operation: 100 kHz, 1 comparator output 24 VDC, matching module, field terminal 1x TB712 order separately! |
| 7DI138.70 |
2003 Digital input module, 10 inputs 24 VDC, sink, 2 inputs usable for event counter operation, input frequency 20 kHz, matching module, field terminal 1x TB712 order separately! |
| 7DI140.70 |
2003 Digital input module, 10 inputs 24 VDC, sink, 2 inputs usable for event counter operation or for direction dependent position detection, input frequency 50 kHz, 4 inputs usable as high speed inputs (e.g. gate time, frequency measurement - only at CPU interface), adaptation module, field terminal 1x TB712 order separately! |
| 7DI435.7 |
2003 Digital input module, 8 inputs 24 VDC, 1 ms, sink/source, field terminals 3x 7TB710 order separately! |
| 7DI439.7 |
2003 Digital input module, 16 inputs 24 VDC, 1 ms, sink/source, field terminals 3x TB718 order separately! |
| 7DI439.72 |
2003 Digital input module, 16 inputs 24 VDC, 1 ms, sink/source, 2 isolated input groups |
| 7DI645.7 |
2003 Digital input module, 8 inputs 100-240 VAC, 50 ms, field terminals 3x 7TB710 order separately! |
| |
|
Contact: |
|
| |
|
| 7DM435.7 |
2003 Digital mixer module, 8 inputs 24 VDC, 1 ms, sink/source, 8 transistor outputs 24 VDC, 0.5 A, field terminals 3x 7TB710 order separately! |
| 7DM438.72 |
2003 Digital mixer module, 8 inputs 24 VDC, 1 ms, sink/source, 8 transistor outputs 24 VDC, 0.5 A |
| 7DM465.7 |
2003 Digital mixer module, 16 inputs 24 VDC, 1 ms, sink, 16 transistor outputs 24 VDC, 0.5 A, field terminals 2x TB718 order separately! |
| |
|
| 7DO135.70 |
2003 Digital output module, 4 FET outputs 12 to 24 VDC, 0.1 A, matching module, field terminal 1x TB712 order separately! |
| 7DO138.70 |
2003 Digital output module, 8 outputs 24 VDC, 0.5 A, short circuit proof, thermal overload protection, matching module, field terminal 1x TB712 order separately! |
| 7DO139.70 |
2003 Digital output module, 8 outputs 12 to 24 VDC, 0.5 A, short circuit protection, thermal overload protection, matching module, field terminal 1x TB712 order separately! |
| 7DO164.7 |
2003 Do 1x4 Zuend-TRIAC 48... 125VAC |
| 7DO435.7 |
2003 Digital output module, 8 FET outputs 24 VDC, 2 A, each output optionally usable as input, order field terminals 3x 7TB710 separately! |
| 7DO720.7 |
2003 Digital output module, 8 relay outputs 240 VAC / 30 VDC, 2 A, field terminals 3x 7TB710 order separately! |
| 7DO721.7 |
2003 Digital output module, 4 relay outputs 240 VAC / 24 VDC, 4 A |
| 7DO722.7 |
2003 Digital output module, 8 relay outputs 240 VAC / 24 VDC, 2.5 A |
| 7DO723.7 |
|
| 7MM424.70-1 |
2003 Motor module, four motor digital output stages, 24 VDC, 3 A up to 50 °C, max. starting current 10 A (max. 50 ms), electronic overcurrent and overtemperature protection, field terminal 1x TB710 to be ordered separately! |
| 7MM432.70-1 |
2003 Motor bridge module, two motor (H) bridges, 10 to 30 VDC @ 4 A, peak current up to 8 A (max. 2 s), integrated current controller with electrical overcurrent protection, 12 digital inputs 24 V, optionally usable for end position monitoring and position detection (counter functions, 20 kHz A/B/R evaluation), order field terminals 1x TB710 and 1x TB718 separately! |
| 7NC161.7 |
2003 Encoder module, input frequency 100 kHz, incremental or absolute, 32 bit, encoder supply 5 VDC or 24 VDC, adaptation module |
| 7IF311.7 |
2003 Interface module, 1 RS232 interface, customization module |
| 7IF321.7 |
2003 Interface module, 1 RS485/RS422 interface, electrically isolated, network-compatible, adaptation module |
| 7IF361.70-1 |
2003 Interface module, 1 RS485 interface, electrically isolated and network-compatible, transmission protocol: Profibus DP, adaptation module |
| 7IF371.70-1 |
2003 Interface module, 1 CAN interface, operation only via frame driver, electrically isolated, network-compatible, adaptation module |
| |
|
| |
|
| |
|
Contact: |
|
| |
|
| |
|
| |
|
| BRCOMP1-0 |
B&R Compact PLC, 24 VDC supply, 6,5 W without panel, 16 KByte
EEPROM |
| BRCOMP2-0 |
B&RCompact PLC, 24 VDC supply, 6,5 W without panel, 16 KByte
EEPROM |
| BRADREL1-0 |
B&R Relay expansion card, 16 relay outputs, 3 A, 5 to 240 VAC
/ 5 to 30 VDC |
| MCGE232-022 |
B&R MINI base unit C, Housing, power supply module NT33 (24 VDC),
CPU CP32 |
| MCGE31-0 |
B&R MINI base unit A, Housing, power supply module NT33 (24 VDC),
CPU CP30 |
| MCGE33-0 |
B&R MINI base unit B, Housing, power supply module NT33 (24 VDC),
CPU CP31 |
| MCCP32-022 |
B&R MINI CPU, 32 KByte EEPROM expansion memory, EE32 m.
16 KByte |
| MCE16A-0 |
B&R MINI digital input module, 16 inptus 24 VDC, 0->1: 10
ms, 1->0: 20 ms, Sink |
| MCE16A-1 |
B&R MINI digital input module, 16 inputs 24 VDC, 0->1: 1
ms, 1->0: 2 ms, Sink |
| MCPZL2-0 |
B&R MINI counter module (event counting), 6 inputs for event counting,
16 Bit, 24 VDC |
| MCA12A-0 |
B&R MINI digital output module, 12 relay outputs 220 VAC / 24
VDC, 2 A |
| MCA12B-0 |
B&R MINI digital output module, 12 transistor outputs 24 VDC,
0,5 A |
| MCA12C-0 |
B&R MINI digital output module, 12 transistor outputs 24 VDC,
2 A |
| MCMAEA-0 |
B&R MINI digital mixed module, 8 inputs 24 VDC, 0->1: 10 ms,
1->0: 20 ms, Sink |
| MCMAEB-0 |
B&R MINI digital mixed module, 16 inputs 24 VDC, 5 ms, Sink, 16
transistor outputs |
| MCMAEB-1 |
B&R MINI digital mixed module, 16 inputs 24 VDC, 1 ms, Sink, 16
transistor outputs |
| MCMZEA-0 |
B&R MINI input/timer module, 8 digital inputs 24 VDC, 0->1:
10 ms, 1->0: 20 ms, Sink |
| MCMZEB-0 |
B&R MINI input/timer module, 8 digital inputs 24 VDC, 0->1:
10 ms, 1->0: 20 ms, Sink |
| MCPEA4-1 |
B&R MINI analog input module, 4 inputs, 0 to 10 V, 10 bit, can be used
in base unit C |
| MCPEA4-2 |
B&R MINI analog input module, 4 inputs , 0 to 20 mA, 10 Bit,
for base unit C |
| MCPRTA-0 |
B&R MINI analog input module, 4 inputs for voltage or current: Voltage:
0 to 10 V, 10 bit |
| MCPEA8-1 |
B&R MINI analog mixed module, 4 inputs, 0 to 10 V, 10 Bit, 4
outputs, 0 to 10 V, |
| MCPEA8-2 |
B&R MINI analog mixed module, 4 inputs, 0 to 20 mA, 10 Bit, 4outputs,
0 to 20 mA |
| MCPTA2-21 |
B&R MINI analog mixed module, 2 inputs, PT100 (3-line connection) -25
to +475 degrees C |
| MCPT41-0 |
B&R MINI analog input module, 4 Inputs, PT100, -25 to +225
degrees C |
| MCPT41-1 |
B&R MINI analog input module, 4 Inputs, PT100, -25 to +225
degrees C |
| MCPTE6-0 |
B&R MINI analog input module, 6 inputs, sensor type F/J/K -150 to +1200
degrees C |
| MCPIFA-3 |
B&R MINI interface module, 1 RS485 interface, Electrically isolated,
network-capable |
| MCPATA-0 |
MINI interface module, For controlling of MINICONTROL operator panels
or SSI Interface |
| MCPIFA-2 |
MINI interface module, 1 RS232 Interface, can be used
in base unit C |
| MCPNC4-1 |
MINI counter module (positioning), 1 input for incremental
encoder, 24 Bit, 50 kHz |
| MCPSA2-0 |
MINI module - stepper motor positioning, 2 axes, 5 digital inputs
24 VDC, Sink |
| ECR165-0 |
B&R MULTI module rack for 16 PLC modules |
| M2R111-0 |
B&R M264 module rack for 11 PLC modules 5 of these slots support P modules
4 slots parallel |
| MDR085-1 |
B&R MIDI module rack for 7 PLC modules |
| ECNT40-0 |
B&R MULTI power supply module 24 VDC, 50 W Can be used in MULTI/MIDI
module racks |
| ECNT43-0 |
B&R MULTI power supply module, 24 VDC, 100 W, extended diagnostics functions |
| ECNT43-1 |
MULTI power supply module, 24 VDC, 100 W, can be used in MULTI/MIDI
module racks |
| ECNT44-0 |
MULTI power supply module, 240 VAC, 100 W, extended diagnostics functions |
| ECNT44-1 |
MULTI power supply module, 240 VAC, 100 W, extended diagnostics functions |
| ECPS45-0 |
MULTI power supply module, 120 VAC, 100 W, extended diagnostics functions |
| MDNT42-1 |
MULTI power supply module, 24 VDC, 20 W, Can be used in MIDI module
racks |
| ECEXE3-0 |
MULTI expansion receiver module, connection of an expansion rack
to main rack |
| ECEXS2-1 |
MULTI expansion sender module, For connection of up to 3 expansion
racks |
| ECCP40-01 |
B&R MULTI CPU type A, EE32 m. 16 KByte EEPROM, 16 KByte SRAM |
| ECCP60-01 |
B&R MULTI CPU type B, 42 KByte SRAM für 42 KB instructions |
| ECCP70-01 |
B&R MULTI CPU type B, 1 RS485/RS232/TTY interface |
| M2NTCP33-0 |
B&R M264 CPU/power supply module, 24 VDC, 50 W, CPU type A |
| M2NTCP63-0 |
B&R M264 CPU/power supply module, 24 VDC, 50 W, CPU type B |
| M2NTCP64-0 |
B&R M264 CPU/power supply module, 240 VAC, 60 W, CPU type B |
| M2PSCP65-0 |
B&R M264 CPU/power supply module, 120 VAC, 60 W, CPU type B |
| MDCP41-01 |
MIDI CPU type A, EE32 m. 16 KByte EEPROM, 16 KByte SRAM |
| ECNP02-0 |
MULTI communication processor, Operation of protocols for devices
from other manufact. |
| ECPMV4-4 |
MULTI proportional solenoid module, 4 PMV outputs, pulse width modulation |
| ECPP40-01 |
MULTI parallel processor type A, EE32 m. 16 KByte EEPROM, 16 KByte
SRAM |
| ECPP60-01 |
MULTI parallel processor type B, 42 KByte SRAM für 42 KB instructions |
| ECPP60MEM-01 |
MULTI parallel processor type B, 128 KByte SRAM data memory |
| ECEE32-0 |
MINI/MULTI application memory, type A CPUs, 16 KB EEPROM |
| ECEE32MP-0 |
MINI/MULTI application memory, network capable online interface |
| ECEE96-0 |
MULTI application memory for type B CPUs and PPs, 96 KB EEPROM |
| ECEP128-0 |
MULTI application memory for type B CPUs and PPs, 128 KB EPROM |
| ECFP128-0 |
MULTI application memory for type B CPUs and PPs, 128 KB FlashPROM
für 42 |
| ECFP128MP-0 |
MULTI application memory for type B CPUs and PPs, 128 KB FlashPROM |
| ECFP384-0 |
MULTI application memory for type B CPUs and PPs, 384 KB FlashPROM |
| SWNP02DP01-0 |
B&R EPROM with Modbus protocol |
| SWNP02DP02-0 |
B&R EPROM with S3964(R) protocol (RK512) |
| SWNP02DP03-0 |
B&R EPROM with Honeywell CIM620 protocol |
| SWNP02DP04-0 |
B&R EPROM with A+B Data Highway protocol |
| SWNP02DPMN-0 |
B&R EPROM with B&R MININET protocol |
| ECE161-0 |
B&R MULTI digital input module, 16 inputs 24 VDC/VAC, 0->1:
10 ms, 1->0: 20 ms |
| ECE161-1 |
B&R MULTI digital input module, 16 inputs 24 VDC/VAC, 0->1:
1 ms, 1->0: 2 ms |
| ECE162-3 |
MULTI digital input module, 16 inputs 220 VAC, 0->1:
40 ms, 1->0: 30 ms |
| ECE243-0 |
MULTI digital input module, 24 inputs 24 VDC, 1 ms, Sink |
| ECE243-1 |
MULTI digital input module, 24 inputs 24 VDC, 1 ms, Sink |
| ECI164-0 |
MULTI digital input module, 16 inputs 120 VAC, <25 ms |
| MDE163-0 |
MULTI digital input module, 16 inputs 24 VDC, 0->1:
10 ms, 1->0: 15 ms |
| MDE163-1 |
MULTI digital input module, 16 inputs 24 VDC, 0->1:
1 ms, 1->0: 1,5 ms |
| ECA121-0 |
MULTI digital output module, 12 Triac-outputs 220 VAC, 3
A |
| ECA161-01 |
MULTI digital output module, 16 relay outputs 220 VAC /
24 VDC, 2 A |
| ECA162-01 |
MULTI digital output module, 16 transistor outputs 24 VDC,
2 A |
| ECA244-0 |
MULTI digital output module, 24 transistor outputs 24 VDC,
0,5 A |
| ECO125-0 |
MULTI digital output modulel, 12 triac outputs 120 VAC, 3
A |
| MDA115-0 |
MULTI digital output module, 16 transistor outputs 24 VDC,
0,5 A |
| MDA163-0 |
MULTI digital output module, 16 relay outputs220 VAC /
24 VDC, 2 A |
| ECPE16-0 |
MULTI analog input module, 16 Eingänge, 16 Bit, 0 bis 10
V, 0 to 50 mA |
| ECPE42-13 |
MULTI analog input module, 4 inputs, Voltage: +/- 10 V,
0 - 10 V, 0 - 5 V, |
| ECPE42-23 |
MULTI analog input module, 4 inputs, 0 to 20 mA, 10 Bit |
| ECPE82-13 |
MULTI analog input module, 8 inputs, Voltage: +/- 10 V,
0 - 10 V, 0 - 5 V |
| ECPE82-23 |
MULTI analog input module, 8 inputs, 0 to 20 mA, 10 Bit |
| ECPE84-0 |
MULTI analog input module, 8 inputs, 0 to 10 V, 16 Bit |
| ECPE84-2 |
MULTI analog input module, 8 inputs, 0 to 25 mA, 15 Bit |
| ECPA42-0 |
MULTI analog output module, 4 outputs, +/- 10 V, 11 Bit |
| ECPA42-01 |
MULTI analog output module, 4 outputs, +/- 10 V, 13 Bit |
| ECPA42-2 |
MULTI analog output module, 4 outputs, 0 to 20 mA, 11 Bit |
| ECPA81-0 |
MULTI analog output module, 8 outputs, +/- 10 V, 11 Bit |
| ECPA81-01 |
MULTI analog output module, 8 outputs, +/- 10 V, 13 Bit |
| ECPA81-2 |
MULTI analog output module, 8 outputs, 0 to 20 mA, 11 Bit |
| ECPA81-21 |
MULTI analog output module, 8 outputs, 0 to 20 mA, 12 Bit |
| ECPT81-0 |
B&R MULTI analog input module, 8 inputs, PT100, -25 to +475
degrees C |
| ECPT81-1 |
MULTI analog input module, 8 inputs, PT100, -25 to +475
degrees C |
| ECPTE8-0 |
MULTI analog input module, 8 inputs, sensor type L, 0 to +400° |
| ECPTE8-1 |
MULTI analog input module, 8 inputs, sensor type L, 0 to +600° |
| ECPTE8-2 |
MULTI analog input module, 8 inputs, sensor type K, 0 to +1200 ° |
| ECPTE8-3 |
MULTI analog input module, 8 inputs, sensor type J, 0 to +500° |
| BRARCIF-0T |
MINI/MULTI application memory, ARCNET interface and EEPROM/RAM,
for Typ A CPUs |
| ECPIF3-0 |
B&R MULTI interface module, 2 RS232/TTY interfaces, 1 CENTRONICS
interface |
| MDPIF1-0 |
MULTI interface module, 1 RS232/TTY interfaces, TTY: electrically
isolated receiver |
| MDPIF1-1 |
MULTI interface module, 1 network-capable RS422 interface |
| ECPNC1-0 |
MULTI counter module (positioning), 1 input for incremental encoder,
24 Bit |
| ECPNC1-1 |
MULTI counter module (positioning), 1 analog output +/- 10 V,
11 Bit |
| ECPNC3-0 |
MULTI counter module (positioning), 1 input for incremental encoder,
24 Bit |
| ECPNC3-1 |
MULTI counter module (positioning), 1 input for incremental encoder,
24 Bit |
| ECPNC8-13 |
MULTI positioning module, 4 axes, 4 transistor outputs 24 VDC, 400
mA |
| ECPNC8-23 |
MULTI positioning module, 4 axes, 1 Relais-Ausgang 24 VDC, 1,5 A |
| ECPSA2-0 |
MULTI positioning module stepper motor positioning, 4 Achsen, 1 relay
output 24 VDC |
| ECPZL1-0 |
MULTI counter module (event counting), 15 inputs for event counting,
16 Bit, 24 VDC |
| HCMAC1-0 |
B&R MAESTRO axis controller, 1 axis controller, 2,8 MHz, inkr. or absolut,
32 Bit |
| BRADPNC8E-0 |
D-type adapter from 37 pin D-type (F) to four 15 pin D-type (F) |
| BRLITB-0 |
Lithium battery 3.6 V |
| ECBL01-0 |
MULTI dummy front, 1 slot |
| ECBL02-0 |
MULTI dummy front, 2 slots |
| ECBL04-0 |
MULTI dummy front, 4 slots |
| ECEXKA-1 |
Expansion cable for connecting an expansion rack to the main rack |
| ECMB01-0 |
MULTI 19 inch cable guide plate with labeled cutouts for cable routing |
| ECPAD1-0 |
Online adapter for PP60 and NTCP6# CPUs |
| SWPIC-0 |
PROSYS programming system level C PLC programming software German
version |
| SWPIC-3 |
PROSYS programming system level C PLC programming software English
version |
| SWPIC-4 |
PROSYS programming system level C PLC programming software Spanish
version |
| SWPIC-5 |
PROSYS programming system level C PLC programming software French
version |
| MCCP31-010 |
MINI Central Processing Unit, Realtime-Clock,
1 TTY Online-Interface |
| |
|
| |
You could not find a certain sparepart? Give us a call: +49 5121
- 267 35 9 |
| |
Here you
will find a detailed B& R product listing containing further descriptions
. |
| |
(HTML) |
| |
|
| |
Here you
will find a detailed B& R product listing containing further descriptions. |
| |
(PDF- 7,15MB) |
| |
|
| |
Here you will
find a detailed B& R product listing containing further descriptions. |
| |
(ZIP - 6,48MB) |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
